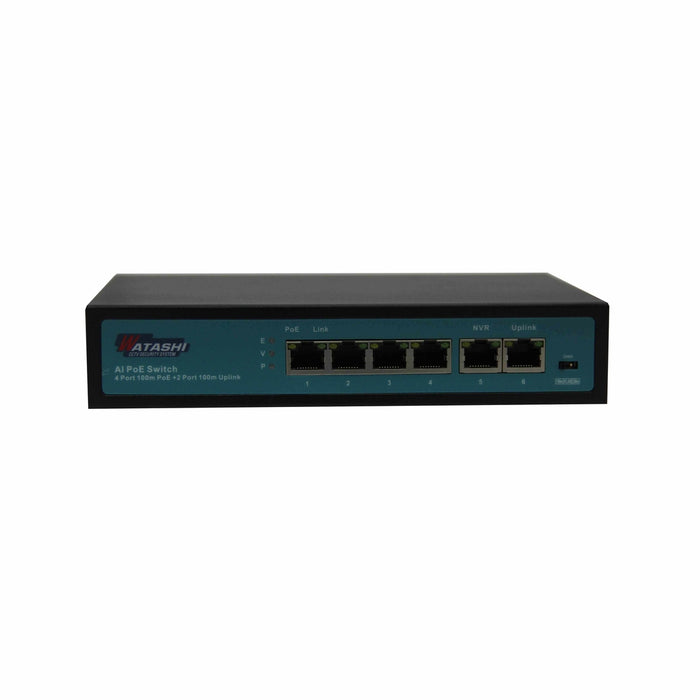

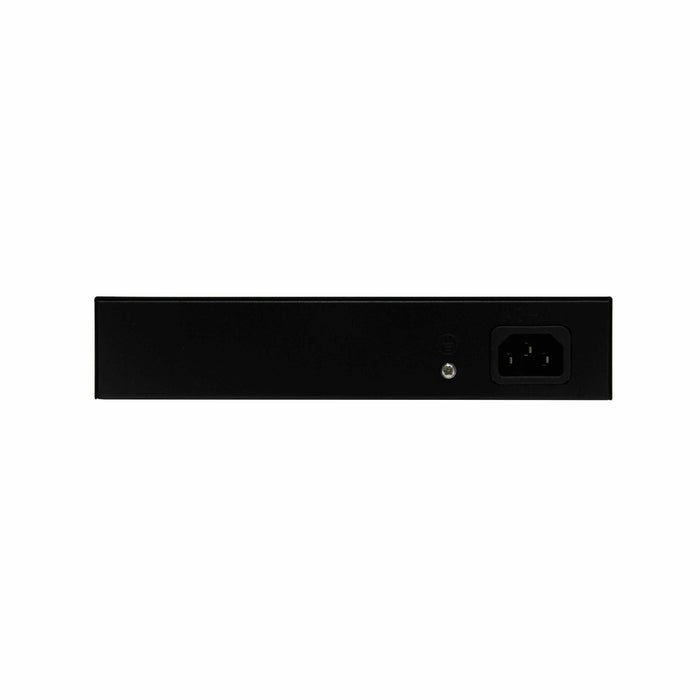

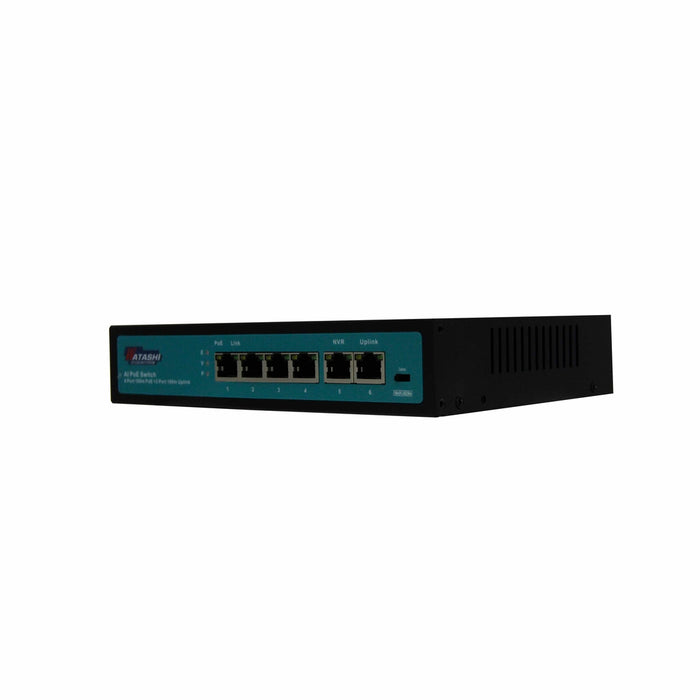

WSC056

 Datasheet and Spec

FEATURES

• Features
  •Main Function: Provide 4x10/100 Base-T Ethernet
  •ports(PoE) , 2x10/100 Base-T Ethernet ports
  •Compliance with standards: IEEE802.3 ,IEEE802.3u,
  •IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE802.3 af/at
  •PoE Power Display : Support 4 LED digital tube
  •display machine PoE power usage. whole machine
  •reaches 72W PoE power output
  •One-key Smart: Support three kinds of working
  •modes (100m, VLAN, 250m)
  •Safeguard: short circuit, broken circuit, over-voltage,
  •over-current, under-voltage, surge
  •Operating temperature: -40℃ ~ 55℃ (-40~+131F)
• รับประกัน 1 ปี
