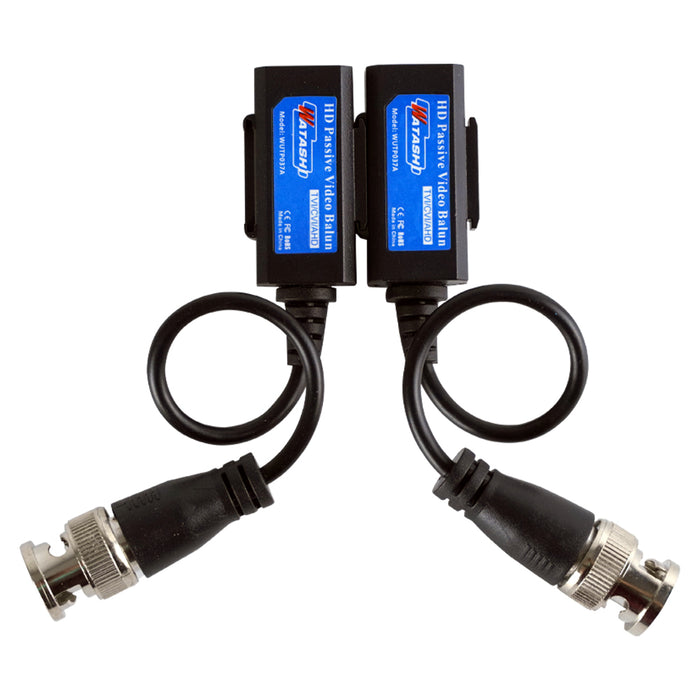

WUTP037A UTP Video Balun วิดิโอ บาลัน CVI+TVI+AHD Transceiver
฿ 290.00 THB
WUTP037 CVI+TVI+AHD Transceiver NO.N101P
FEATURES
- Compatible with HDCVI/HDTVI/AHD
- Transmission signal: 720P/1080P
- Cable: CAT 5/5e/6
- Nopower required
- Transmission Distance HDCVI 720P: 400m / 1080P: 250m , HDTVI 720P/1080P :250m , AHD 720P: 350m / 1080P: 200m
 |
WUTP037.pdf |
SPECIFICATION
Properties
- Transmission Signal : 1channel
- Transmission Distance
: HDCVI 720P: 400m / 1080P: 250m
:HDTVI 720P/1080P : 250m
:AHD 720P: 350m / 1080P: 200m
- Category Type : UTP CAT5/5E/6
Video Transmission Propertion and Port
- Coaxiai Video connector : BNC-M
- Twisted-pair Video connector : Push-terminal
- Compatible Format : HDCVI/HDTVI/AHD
- Resolution : 720P/1080P
- Anti-interference : >60db
Protection
- ESD
: 1bair discharge electricity level 3
: Per: IEC61000-4-2
- Coaxial cable connector : 2KV(common-code)Per: IEC1000-4-5
- UTP Cable Connector : 2KV(different-code), 4KV(common-code),Per: IEC1000-4-5
Impedance
- BNC male : 75ohms
- UTPcable : 100 ohms
PhysicalProperties
- Dimension (L*W*H) : 36.5mm*17.5mm*17.3mm
- Shell : ABS
- Color : Black
- N. W. : 22.6g
Stability
- MTBF : >10000H
Environmental
- Operating Temperature : -10-55℃
- Storage Temperature : -20-70℃
- Humidity : 0-95% (non-condensing)
