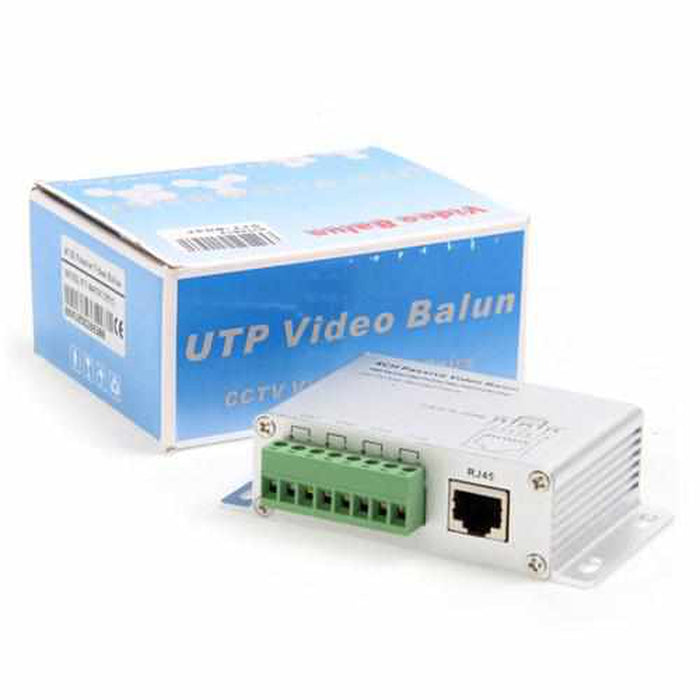

UTP Video Balun 4CH Watashi#WUTP012
฿ 0.00 THB
4 Channel Passive Video Balun WUTP012 :
- 4 channel passive video balun
- Full-motion CCTV video at distances up to 330m when used with any passive transceiver
- Up to 1500m with any active UTP video receiver
- 60 dB crosstalk and noise immunity
- NTSC, PAL , and SECAM video formats
- No power required
- Built-in transient suppression protection
- Frequency response: DC-8MHZ
- Attenuation : 0.5dB typ
- Connectors: Female BNC,Rj45and terminal blocks
- CMRR (Common Mode Rejection Ratio): 60DB
- Impedance: BNC: 75Ω ;Rj45/Terminal:100Ω
- Working temperature: -10? to +70?
- Storage temperature: -30? to +70?
- Humidity : 0 to 95%
- Dimension: 105mm*58mm*29mm (excluding connectors)
- Weight :139g
- Material: Aluminium-alloy
